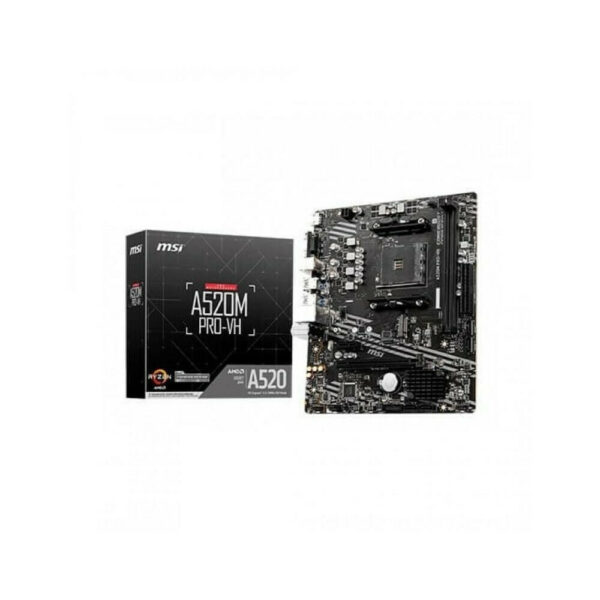

MSI A520M Pro-VH (AM4) Micro ATX – AMD AM4 Socket (7C96-017R)

Τεχνικά Χαρακτηριστικά

• 2x DDR4 memory slots, support up to 64GB ¹
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
    • 1DPC 1R max speed 4600 MHz
    • 1DPC 2R max speed 3866 MHz
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

• 1x PCIe 3.0 x1 slot ¹
• 1x PCIe 3.0 x16 slot

• 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160 @60Hz¹²
  Support HDCP 1.4 & 2.3
• 1 x VGA port, supporting a maximum resolution of 2048×1280 @60Hz¹
• Maximum shared memory of 16GB

1. Available for the processor with integrated graphics.
2.  Graphics specifications may vary depending on the CPU installed.

• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M) (from AMD Processor)
  • Supports PCIe 3.0¹
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

AMD A520 Chipset

• 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors

AMD Processor

• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Realtek^® ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

• 1x Realtek^® RTL8111H 1Gbps LAN controller

• 1x 24-pin ATX main power connector
• 1x 4-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper

1. HDMI
2. VGA
3. Keyboard / Mouse
4. USB 3.2 Gen 1 5Gbps Type-A
5. USB 3.2 Gen 1 5Gbps Type-A
6. LAN port
7. Audio connector
8. USB 2.0 Type-A

• mATX Form Factor
• 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Εγγύηση 3 Έτη
