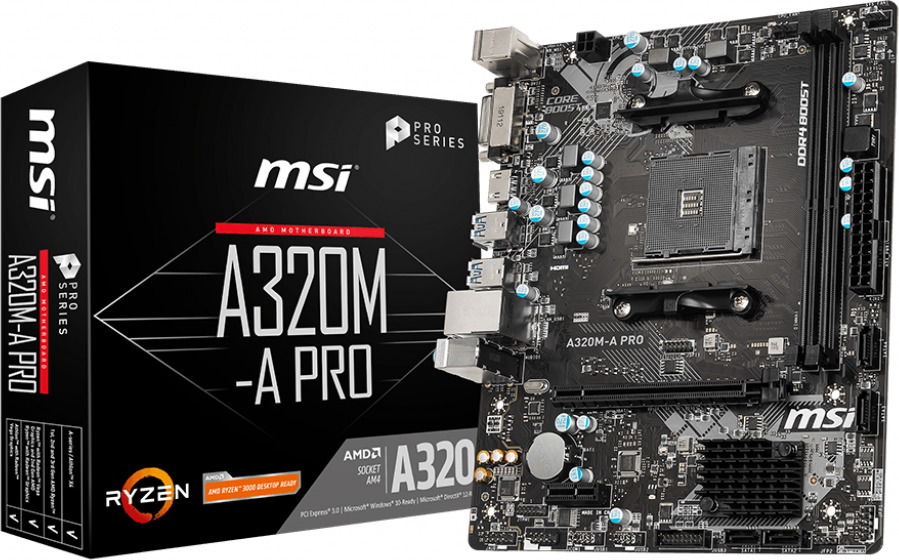

MSI A320M-A PRO AM4 mATX (7C51-005)

Τεχνικά Χαρακτηριστικά

• 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
• Support 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)

•  x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz

• 7.1-Channel High Definition Audio

• 1 x Realtek 8111H Gigabit LAN controller

• 1 x PCIe 3.0 x16 slot
  • Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processorss
  • Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
  • Supports x4 speed with AMD^® Athlon™ with Radeon™ Vega Graphics Processors
• 1 x PCIe 2.0 x1 slots

• 4 x SATA 6Gb/s ports
• Supports RAID 0, RAID 1 and RAID 10

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 1 x Serial port connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

1. Mouse
2. DVI-D Port
3. USB 3.2 Gen1
4. LAN Port
5. Keyboard
6. HDMI Port
7. USB 2.0 Ports
8. HD Audio Connectors

• 8.9 in. x 7.4 in. (22.6 cm x 18.7 cm)
• m-ATX Form Factor

Εγγύηση 3 Έτη
