SPECIFICATIONS

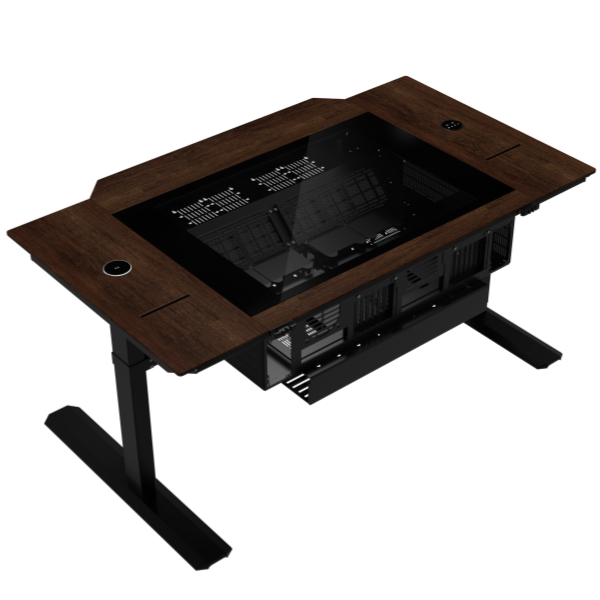

| PRODUCT NAME | DK-07 WOOD |
|---|---|
| ＭODEL | DK07X-WD |
| DIMENSIONS | 1480 (D) x 877 (W) x 676-1162 (H)mm |
| MOTHERBOARD SUPPORT | E-ATX ×2 |
| EXPANSION SLOT | 7 Slots |
| STORAGE | Dual System: 3.5″ HDD ×10 + 2.5″ SSD ×4 Single System: 3.5″ HDD ×10 + 2.5″ SSD ×8 |
| GPU LENGTH CLEARANCE | 383mm |
| CPU COOLER HEIGHT CLEARANCE | 180mm |
| PSU SUPPORT | 220mm ×2 |
| RADIATOR SUPPORT | Dual System – 480mm / 420mm / 2 x 360mm / 2 x 280mm / 2 x 240mmSingle System – Front: 480mm / 420mm / 2 x 360mm / 2 x 280mm / 2 x 240mm Middle Right: 360mm / 240mm Middle Left: 360mm / 240mm |
| FAN SUPPORT | Dual System – Front: 120mm ×6 or 140mm ×4 Rear: 120mm ×2 Right side: 120mm ×2 Left side: 120mm ×2Single System – Front: 120mm ×6 or 140mm ×4 Rear: 120mm ×1 Right side: 120mm ×2 Left side: 120mm ×2 Middle Right: 120mm x3 Middle Left: 120mm x3 |
| DUST FILTER | Dual System / Single System – Front: ×2 Right Side: ×1 Left Side: ×1 |
| I/O PORTS | Dual System / Single System – Power + Reset + USB 3.1 Type-C ×2 + USB 3.0 Type-A ×2 + Mic/Audio ×1 |
